How Aerial Works

Introduction

Aerial is a scalable neurosymbolic association rule mining (ARM) method for tabular data.

It addresses the rule explosion and execution time issues in classical ARM by combining:

  • Autoencoder-based neural representation of tabular data

  • Rule extraction from learned neural embeddings

Learn more about the architecture, training, and rule extraction in our paper: Neurosymbolic Association Rule Mining from Tabular Data

Pipeline Overview

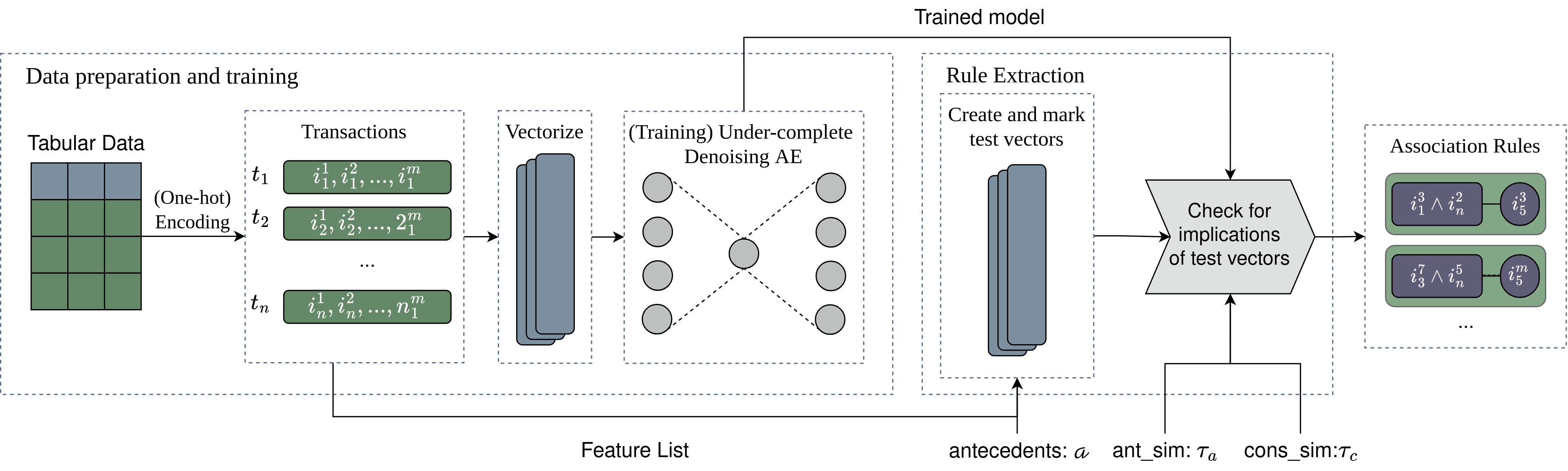

The figure below shows the pipeline of operations for Aerial in 3 main stages.

Aerial neurosymbolic association rule mining pipeline

1. Data Preparation

  1. Tabular data is first one-hot encoded. This is done using data_preparation.py:_one_hot_encoding_with_feature_tracking().

  2. One-hot encoded values are then converted to vector format in the model.py:train().

  3. If the tabular data contains numerical columns, they are pre-discretized as exemplified in Running Aerial for numerical values.

2. Training Stage

  1. An under-complete Autoencoder with either default automatically-picked number of layers and dimension (based on the dataset size and dimension) is constructed, or user-specified layers and dimension. (see AutoEncoder)

  2. All the training parameters can be customized including number of epochs, batch size, learning rate etc. (see train() function)

  3. An Autoencoder is then trained with a masking mechanism to learn associations between input features: each batch randomly corrupts a subset of features to a uniform “unknown” distribution, and the Autoencoder learns to reconstruct them from the remaining unmasked features. This is an improvement over the Gaussian-noise-based denoising mechanism described in the original paper — masking mirrors the antecedent → consequent query pattern used during rule extraction more directly than noise injection does. The full original Autoencoder architecture is given in the paper.

3. Rule Extraction Stage

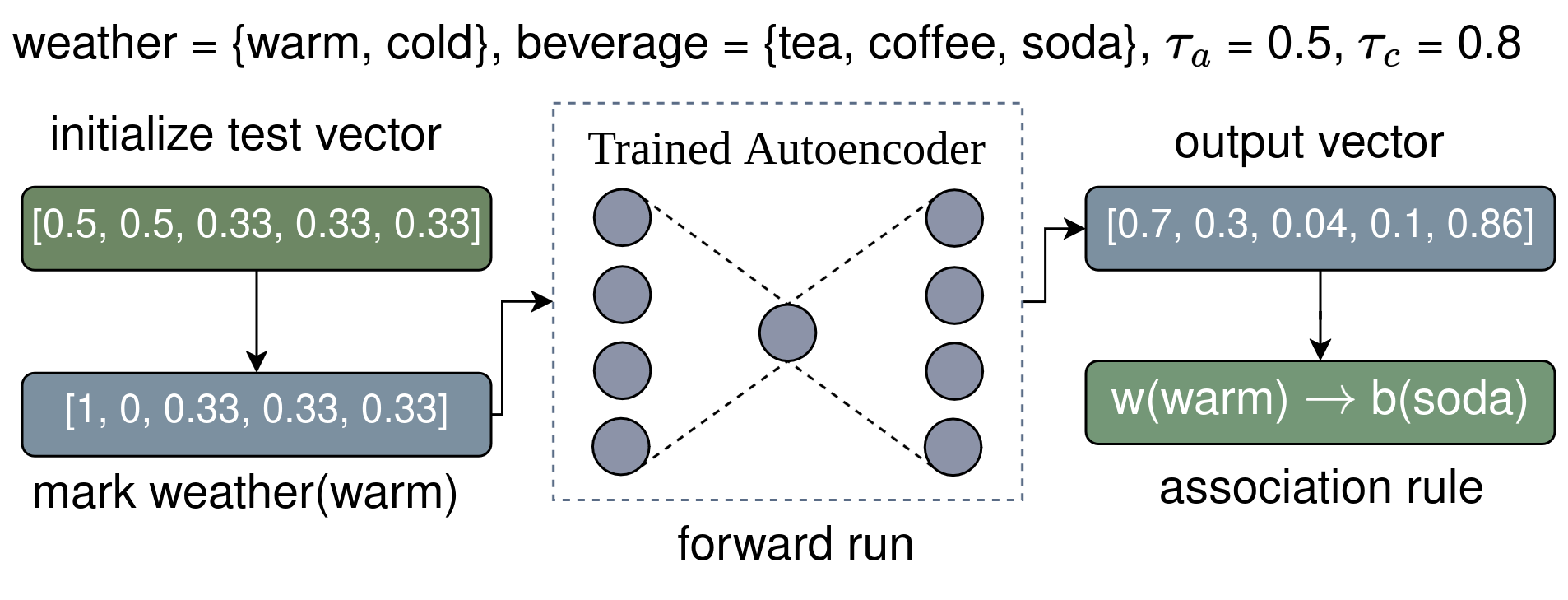

  1. Association rules are then extracted from the trained Autoencoder using Aerial’s rule extraction algorithm (see rule_extraction.py:generate_rules()). Below figure shows an example rule extraction process.

  2. Example. Assume weather and beverage are features with categories {cold, warm} and {tea, coffee, soda} respectively.

    The first step is to initialize a test vector of size 5 corresponding to 5 possible categories with equal probabilities per feature, [0.5, 0.5, 0.33, 0.33, 0.33]. Then we mark weather(warm) by assigning 1 to warm and 0 to cold, [1, 0, 0.33, 0.33, 0.33], and call the resulting vector a test vector.

    Assume that after a forward run, [0.7, 0.3, 0.04, 0.1, 0.86] is received as the output probabilities. Since the probability of p_weather(warm) = 0.7 is bigger than the given antecedent similarity threshold (τ_a = 0.5), and p_beverage(soda) = 0.86 probability is higher than the consequent similarity threshold (τ_c = 0.8), we conclude with weather(warm) → beverage(soda).

    Aerial rule extraction example

  3. For antecedents with more than one feature value, frequency is estimated with a pairwise joint-probability approximation (geometric mean of pairwise implication probabilities from the single-feature-value forward runs) rather than checking each feature value’s frequency independently — a more conservative estimate that better reflects actual feature value co-occurrence.

  4. Antecedent combinations are searched with an FP-Growth-style growth strategy: feature values are ordered by descending frequency, and only combinations whose estimated frequency passes min_rule_frequency are extended with further feature values. Aerial+ replaces the counting operation of classical ARM with the Autoencoder’s implication probabilities, so in principle the search strategy of any rule miner can run on top of it — PyAerial adopts FP-Growth’s, as it is among the fastest. As a result, the number of forward runs is proportional to the number of frequent antecedent combinations rather than all possible combinations, and max_antecedents=None is supported: the search stops on its own once no combination passes the frequency threshold.

  5. Frequent itemsets (instead of rules) can also be extracted using the same growth strategy (rule_extraction.py:generate_frequent_itemsets()).

  6. Quality metrics (support, confidence, coverage, Zhang’s metric, lift, conviction, Yule’s Q, interestingness, leverage) are calculated automatically during rule extraction using optimized batch processing with optional parallelization support.

How PyAerial Improves on Aerial+

PyAerial implements the Aerial+ paper with the following improvements:

  • Masking-based training: replaces the Gaussian-noise-based denoising of the paper; masking mirrors the antecedent → consequent query pattern used during rule extraction (see the Training Stage above).

  • Pairwise frequency estimation: joint antecedent frequency is estimated from pairwise implication probabilities instead of checking each feature value independently.

  • FP-Growth-style rule extraction: since Aerial+ only approximates the counting operation, any rule miner’s search strategy can be layered on top of the trained Autoencoder; PyAerial uses FP-Growth’s — among the fastest rule miners — making rule extraction scale with the number of frequent antecedent combinations and enabling unlimited antecedents.

Key Features

PyAerial provides a comprehensive toolkit for association rule mining with advanced capabilities:

  • Scalable Rule Mining - Efficiently mine association rules from large tabular datasets without rule explosion

  • Frequent Itemset Mining - Generate frequent itemsets using the same neural approach

  • ARM with Item Constraints - Focus rule mining on specific features of interest

  • Classification Rules - Extract rules with target class labels for interpretable inference

  • Numerical Data Support - Built-in discretization methods (equal-frequency, equal-width)

  • Customizable Architectures - Fine-tune autoencoder layers and dimensions for optimal performance

  • GPU Acceleration - Leverage CUDA for faster training on large datasets

  • Quality Metrics - Comprehensive rule evaluation (support, confidence, coverage, Zhang’s metric)

  • Rule Visualization - Integrate with NiaARM for scatter plots and visual analysis

  • Flexible Training - Adjust epochs, learning rate, batch size, and the masking window (min/max unmasked features)
